VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in North Palm Beach, FL | Sightline Windows & Doors North Palm Beach

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door built around a minimalist frame and multi-point locking system. In North Palm Beach, homeowners and builders choose this ViewLux series when they want clean sightlines, thermal efficiency, and security without the bulk of traditional entry systems. We’re Sightline Windows & Doors North Palm Beach, an authorized ViewLux installation partner serving North Palm Beach since 2016. Every door we sell is measured, ordered, and installed by our in-house crew, not subcontractors. That means your warranty stays intact and your finish carpentry stays clean. Call (561) 475-1246 to schedule a free on-site measurement and written quote.

Call (561) 475-1246

Product Overview - VLX 100 Swing / Entry Door

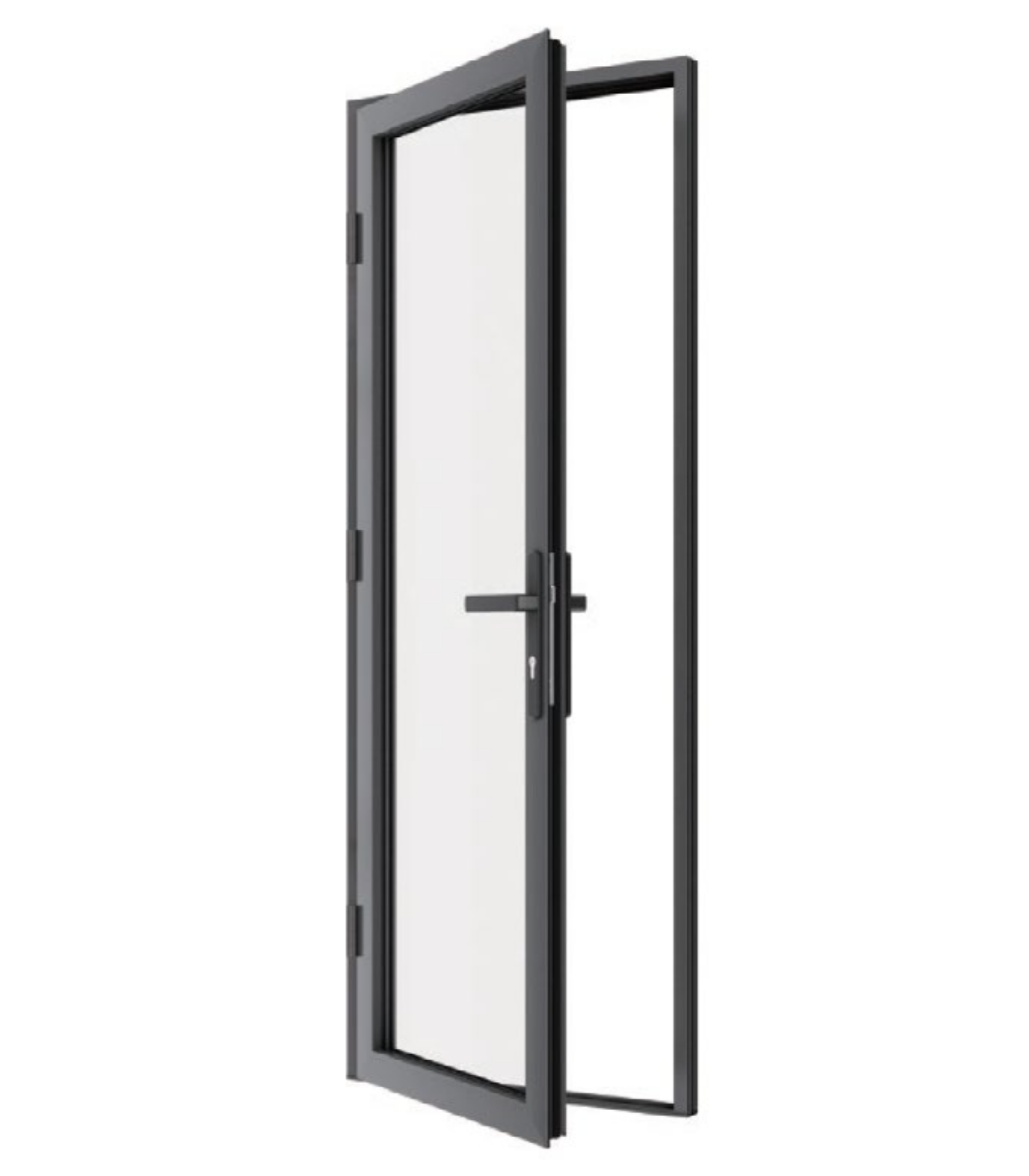

The VLX 100 is a single-acting swing door engineered for residential and light commercial entry applications where the frame itself should disappear. The 2.56-inch profile width keeps the visual mass low, while the 0.098-inch wall thickness gives the aluminum extrusion the rigidity to stay square through decades of North Palm Beach heat cycles and humidity swings.

Buyers in North Palm Beach gravitate toward this series for three reasons. First, the minimalist aesthetic pairs with contemporary architecture, coastal modern renovations, and even traditional homes where owners want a statement entry without ornate detailing. Second, the multi-point locking hardware engages at three points along the jamb, not just at the deadbolt, which matters for both security and long-term weather seal compression. Third, the door is available up to 48 inches wide in a single-panel configuration, which opens up design possibilities for grand entries that still operate on a standard hinge set.

ViewLux manufactures the VLX 100 with thermally broken aluminum framing. The thermal break is a polyamide insert that separates interior and exterior aluminum surfaces, reducing conductive heat transfer. In North Palm Beach’s cooling-dominated climate, that means your air conditioning works less hard against the door slab. We specify this series for waterfront properties in Juno Beach, PGA National renovations, and new builds throughout Palm Beach County where energy code compliance and clean aesthetics both matter.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

The VLX 100 carries NFRC-rated energy performance through its thermally broken frame and insulated glass packages. In North Palm Beach, where summer attic temperatures exceed 140°F and radiant heat pounds east-facing entries, this thermal break prevents the frame from becoming a heat radiator inside your home. We typically pair the frame with Low-E glass for south and west exposures.

Acoustic Performance

Laminated glass options add mass and damping to the door slab, reducing exterior noise transmission. For homes near PGA Boulevard, US-1, or the Florida Turnpike corridor in North Palm Beach, this matters. The multi-point compression seal also eliminates the small air gaps that let sound leak past single-point locks.

Airtightness & Weather Seal

The multi-point lock draws the door panel evenly into a continuous bulb seal around the perimeter. Our AAMA 812 low-expansion foam sealant at the frame-to-wall interface closes the rough opening gap without the shrinkage that causes drafts in poorly installed doors. We test seal compression during final adjustment.

Waterproofing

North Palm Beach sees 60-plus inches of annual rainfall, often driven horizontally by summer thunderstorms. The VLX 100 sill profile includes a dam and drainage pathway. Our installation includes backdam integration with the wall weather barrier and slope correction so water exits, not pools.

Wind Resistance

The 0.098-inch wall thickness and reinforced corner construction meet wind-load ratings for Palm Beach County requirements. For coastal exposure zones in North Palm Beach, we specify impact-resistant laminated glass that meets Florida Building Code missile impact standards without needing aftermarket shutters.

Security & Hardware

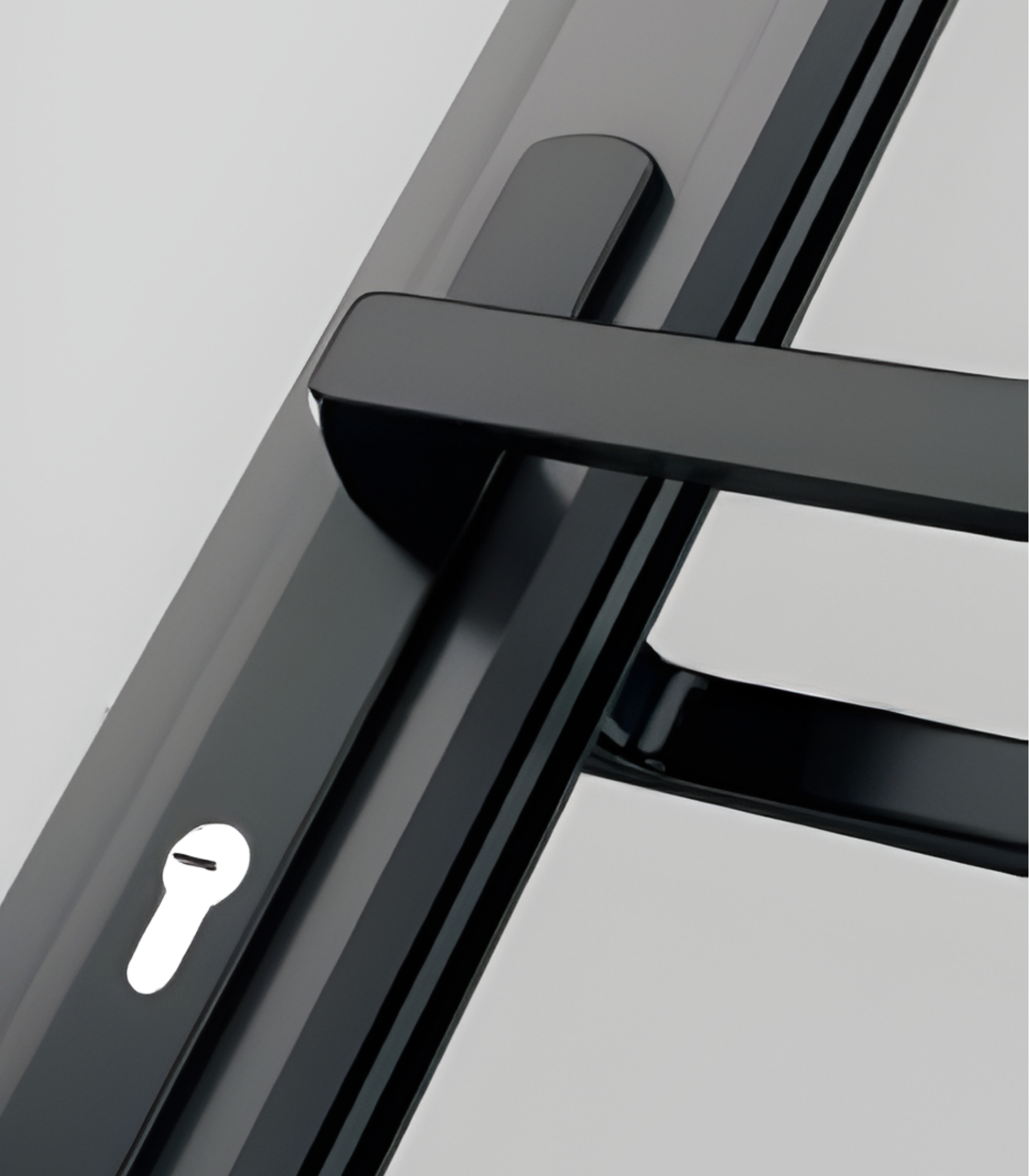

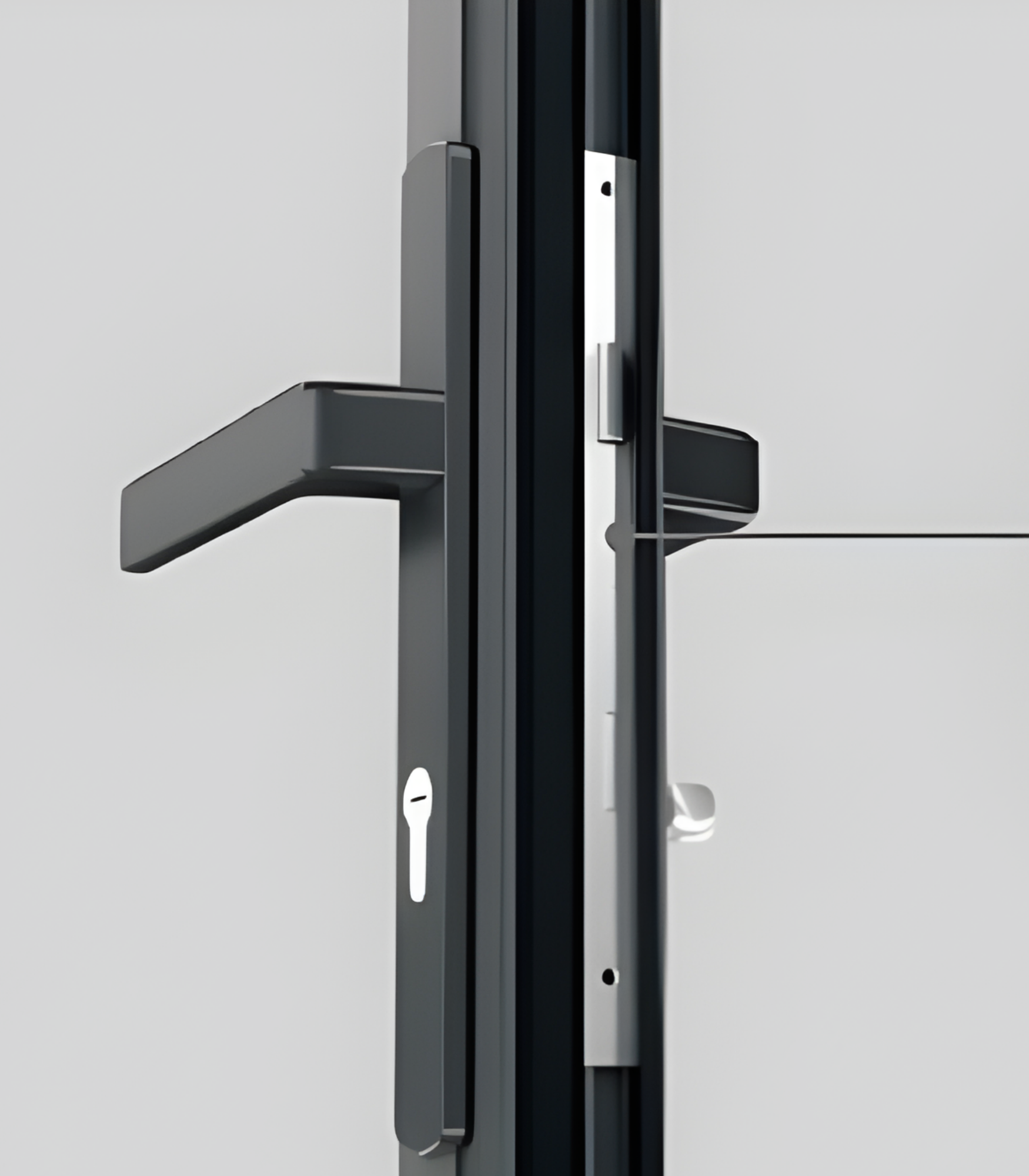

Multi-point locking engages at the deadbolt, hook bolt, and compression point. The hardware is integrated at the factory, not field-modified. This prevents the alignment drift that happens when single-point locks are retrofitted onto frames never designed for them. We adjust strike plates to factory spec during installation.

Color & Glass Options

The VLX 100 finish palette runs from stark modern to warm traditional. Premium Black and Pure White dominate our North Palm Beach orders, especially for homes with white stucco or limestone cladding where the door becomes a graphic element. Anodized Silver reads industrial and pairs well with concrete and steel accents. Bronze and Champagne soften the metallic presence for Mediterranean and transitional architecture. Teak Wood is a powder-coated aluminum grain finish that gives the warmth of wood without the maintenance liability in Florida humidity.

Glass selection depends on privacy, solar control, and code requirements. Clear glass maximizes daylight and views for entries with covered porches. Frosted and Obscure options diffuse light for bathrooms, side entries, or any door where privacy matters more than sightlines. Low-E coating is our default recommendation for North Palm Beach’s cooling climate, it reflects infrared heat while passing visible light. Tempered glass meets safety glazing requirements for doors. Laminated glass adds the impact resistance required in wind-borne debris regions and provides the acoustic damping mentioned above.

Screen options include a factory-integrated retractable screen that stores in the jamb when not deployed, or no screen for purely aesthetic entries where ventilation is handled elsewhere.

Installation by Sightline Windows & Doors North Palm Beach in North Palm Beach

We install every VLX 100 ourselves. No subs, no day labor, no handoff to a crew we’ve never met. Our process starts with a pre-install inspection of the rough opening: we check plumb of the jack studs, level of the sill plate, and square of the header. In North Palm Beach, we frequently find openings that settled during the slab cure or were framed fast for production speed. We correct before the door arrives, not after.

The frame is set level, plumb, and square using composite shims that won’t rot or compress. We fasten through the jamb into structural framing per AAMA 2400/2410 installation standards, not just trim-screwed into sheathing. The perimeter gap receives AAMA 812 low-expansion foam sealant in two passes, the first for fill, the second after initial cure for complete seal. We cap with backer rod and sealant matched to your exterior cladding.

Final installation includes operational testing of the multi-point lock, compression seal verification with a dollar-bill drag test, and a water spray test on the sill and jamb interfaces. We protect finished floors, haul debris, and leave the entry ready for your painter or stucco contractor.

Here’s what matters: ViewLux warranties require AAMA-standard installation by an authorized partner. Improper installation, including wrong sealant type, missing shims, or out-of-square setting, voids coverage. We’ve handled warranty claims for other manufacturers’ products where a handyman install caused frame twist that the factory wouldn’t cover. In North Palm Beach’s salt air and wet season, that protection matters. We document every install with photos for your records and ours.

North Palm Beach’s Florida Building Code wind-borne debris requirements apply to most replacement and new construction. We pull permits when required, coordinate inspections, and ensure your door certificate of compliance is filed. For homes east of US-1 or in designated flood zones, we verify finished floor elevation against the sill height for flood opening requirements.

Frequently Asked Questions - VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door?

Lead time runs 6 to 8 weeks from final measurement and deposit, depending on glass and finish selection. Premium Black and Clear glass typically ship fastest. Custom laminates or Teak Wood grain may extend toward the longer end. Call (561) 475-1246 to check current production schedules and lock your slot.

Does the VLX 100 qualify for energy tax credits?

The NFRC-rated thermal performance and Low-E glass options may contribute to whole-home energy efficiency credits under federal programs, though the door alone does not carry a standalone tax credit. We provide NFRC labels and product certification documents for your tax preparer or energy rater. For current North Palm Beach utility rebate programs, call us and we’ll check availability.

What warranty comes with the Swing / Entry Door?

ViewLux provides a limited lifetime warranty on the aluminum frame, 20 years on the insulated glass unit, and 10 years on hardware, all contingent on authorized installation. Our workmanship carries a 5-year installation warranty covering seal, level, and operational issues. We handle warranty claims directly with ViewLux, you don’t chase the factory yourself.

Can I customize the size?

The VLX 100 accommodates single-panel widths up to 48 inches and standard heights to 96 inches. Wider or taller openings require sidelite or transom configurations, which we design around your rough opening. We measure on-site and draft shop drawings for your approval before ordering. Call (561) 475-1246 to schedule measurement for your specific opening.

How do I maintain aluminum frames in North Palm Beach?

Rinse frames quarterly with fresh water to remove salt accumulation, especially for oceanfront homes in North Palm Beach. Wash annually with mild soap and a soft brush. Lubricate the multi-point lock mechanism with dry Teflon spray, not oil, which attracts grit. Inspect sill drainage weeps seasonally for debris. Avoid pressure washing directly at seal interfaces. With this basic care, your finish and hardware should outlast the warranty period.

Get a Quote - VLX 100 Swing / Entry Door in North Palm Beach

Ready to see the VLX 100 in your home? We’ll bring finish samples, glass samples, and a measuring tape. Every quote is itemized, fixed, and free. No pressure, no deposit to get numbers. Call (561) 475-1246 or stop by our North Palm Beach showroom. Let’s get your entry door right the first time.

Written by the team at Sightline Windows & Doors North Palm Beach, serving North Palm Beach since 2016.
