The VLX 150 Heavy-Duty Sliding Door is a strength-focused large-span aluminum slider built for homeowners and builders in North Palm Beach who refuse to compromise on engineering or sightlines. At Sightline Windows & Doors North Palm Beach, we’re an authorized ViewLux installation partner, which means every door we sell carries full manufacturer warranty protection and is fitted by technicians trained specifically on this system. North Palm Beach homes along the Intracoastal and throughout Juno Beach, Singer Island, and PGA National regularly demand openings wider than standard patio doors allow. The VLX 150 answers that with stainless hardware, multi-track configurations, and spans up to 24 feet. Call (561) 475-1246 to schedule your free on-site measurement and written estimate.

Call (561) 475-1246

Product Overview - VLX 150 Heavy-Duty Sliding Door

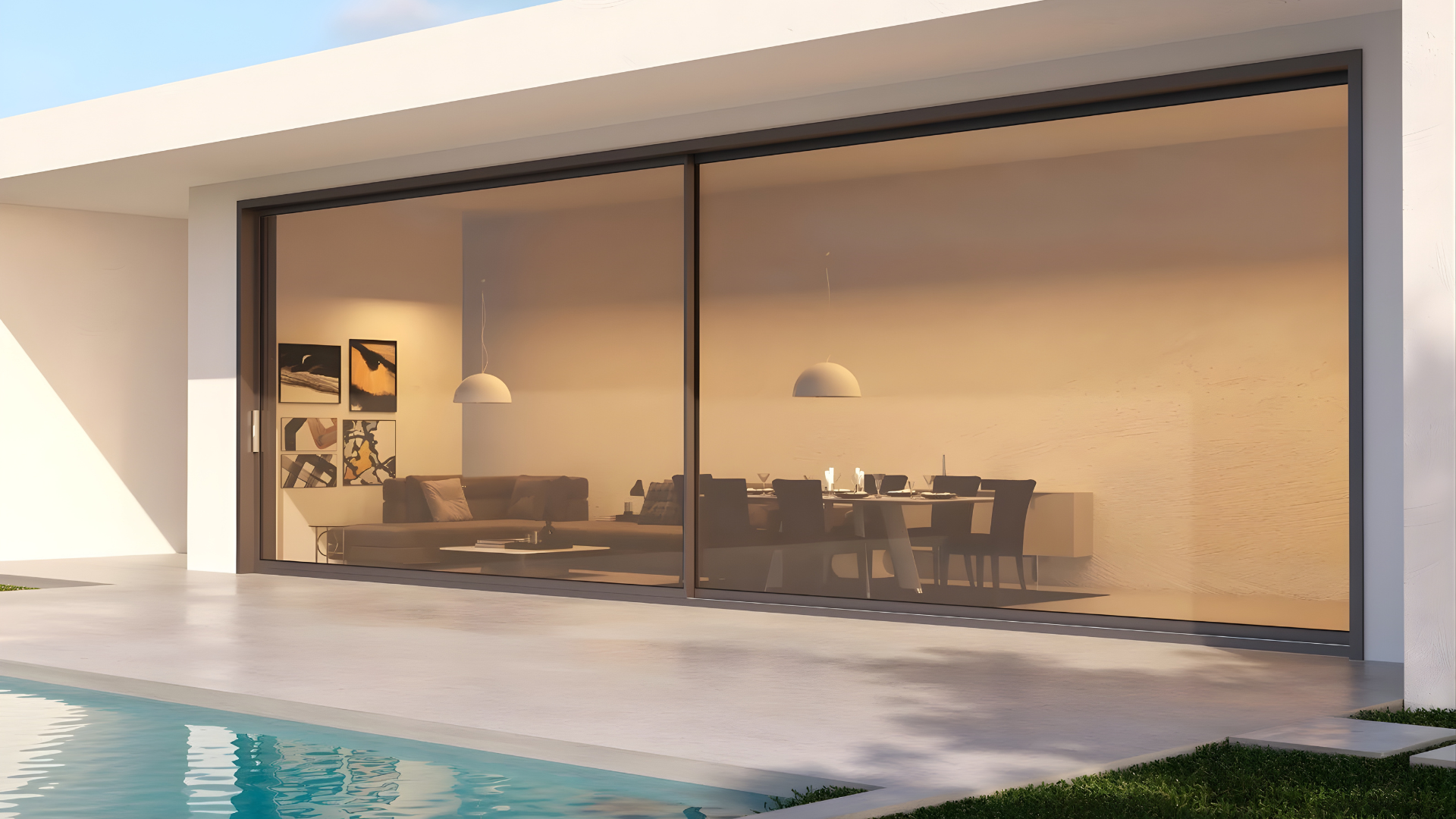

The VLX 150 was engineered for one purpose: moving more glass with less frame. Architects and builders in North Palm Beach specify this series when the design calls for uninterrupted views of the water, golf course, or landscaped courtyard without the bulk of traditional sliding systems.

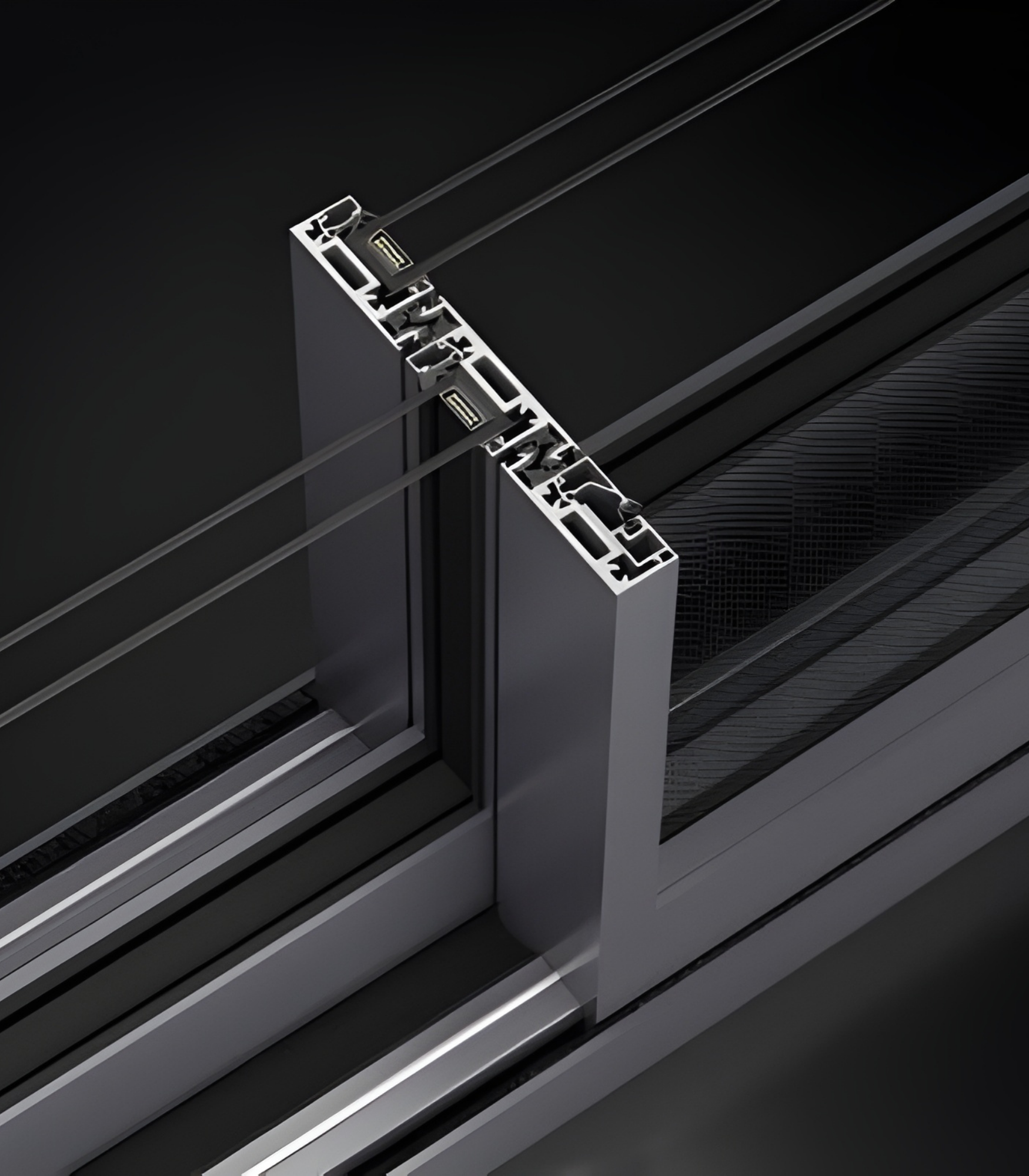

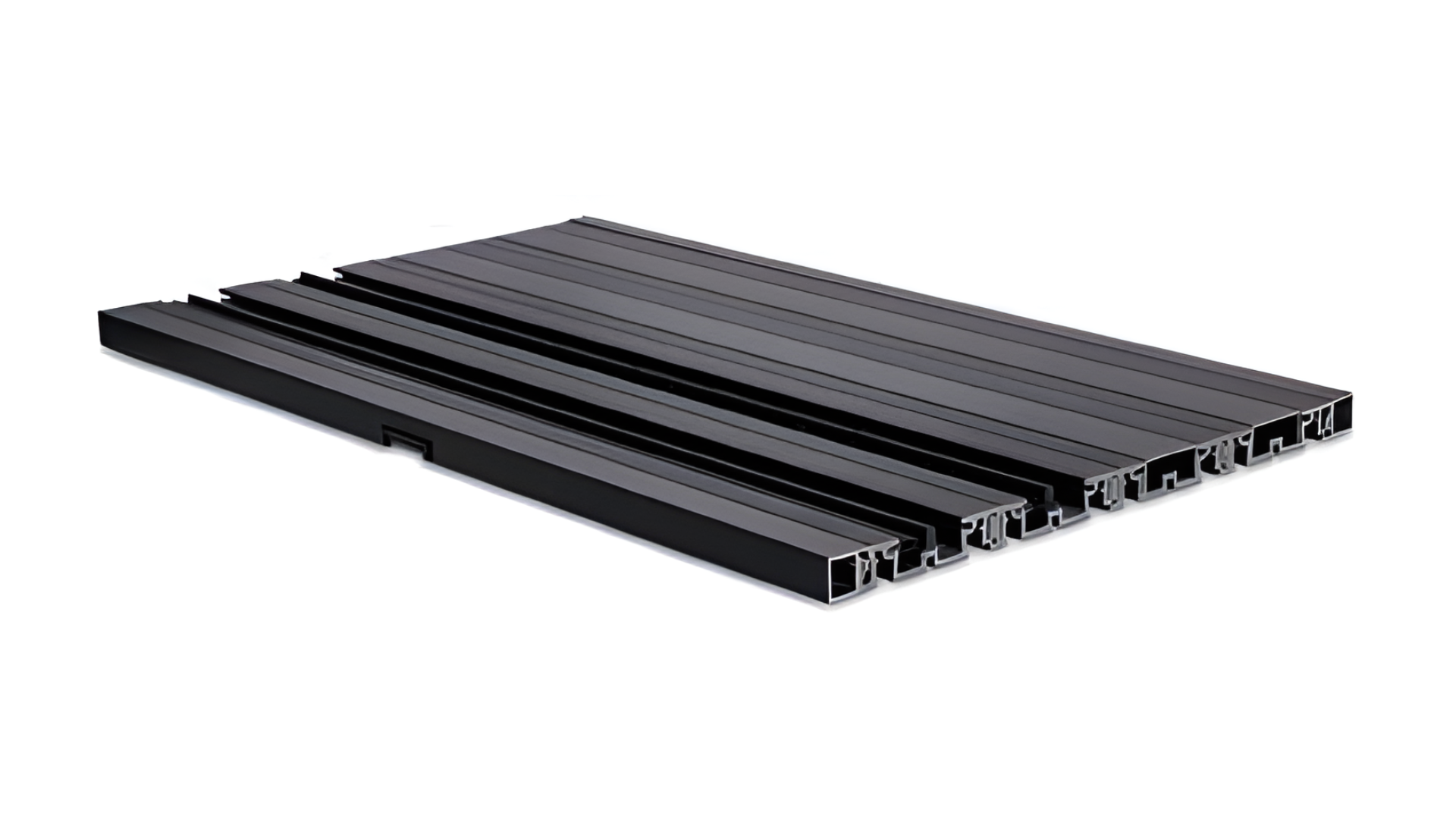

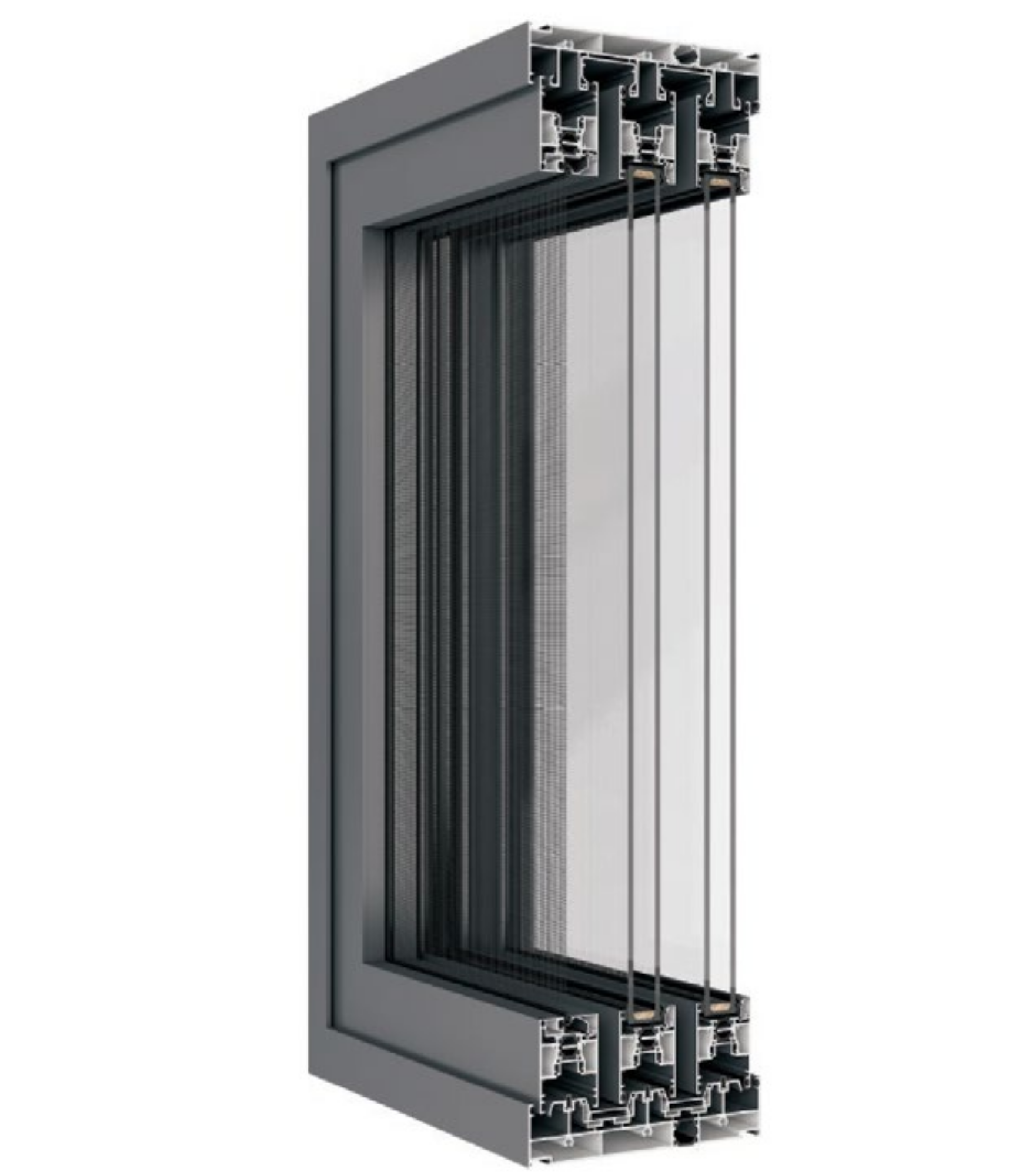

What separates the VLX 150 from lighter residential sliders is its aluminum wall thickness of 0.118 inches and a 2.95-inch profile width that carries substantial glass loads without flexing or racking over time. The stainless steel roller hardware is rated for the weight of oversized panels, and the multi-track frame allows configurations from a simple two-panel bypass up to four independent tracks for maximum ventilation flexibility.

We’ve installed this door in new construction along US-1 in North Palm Beach, in waterfront remodels where the old slider had sagged off its track, and in commercial-adjacent residential projects where the architect specified a clean, minimal sightline. The material is aluminum throughout, thermally broken for Florida’s cooling-dominated climate. It won’t swell, rot, or invite termites like wood-framed alternatives. For North Palm Beach property owners who want the opening width of a folding door system with the simplicity and reliability of a slider, the VLX 150 is the logical choice.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

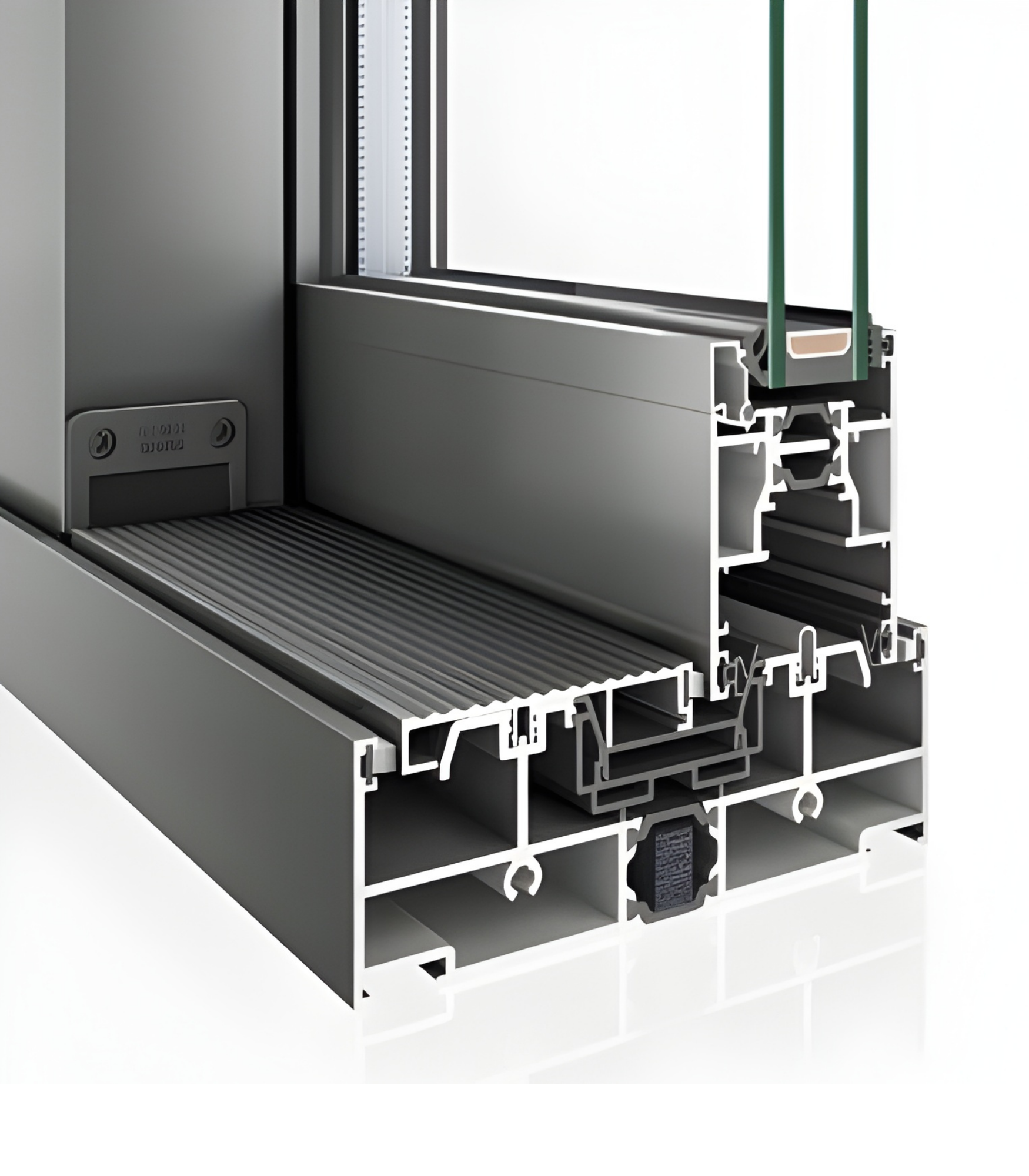

The VLX 150 uses a polyamide thermal break that separates interior and exterior aluminum surfaces, cutting conductive heat transfer. NFRC-rated performance means verified U-factor and SHGC numbers you can compare against Florida energy code requirements. In North Palm Beach, where air conditioning runs eight months or more, that thermal break pays back through reduced cooling load.

Acoustic Performance

Multi-chambered frame profiles and dual-seal gasketing reduce exterior noise transmission. For homes near I-95, PGA Boulevard, or flight paths into Palm Beach International, the VLX 150 with laminated glass delivers measurable sound attenuation without sacrificing the open feel.

Airtightness & Weather Seal

Dual-durometer compression seals at all panel-to-frame and panel-to-panel interfaces maintain positive closure. The system is tested and rated for air infiltration resistance under AAMA protocols. North Palm Beach’s humid summers and occasional winter cold snaps stay outside where they belong.

Waterproofing

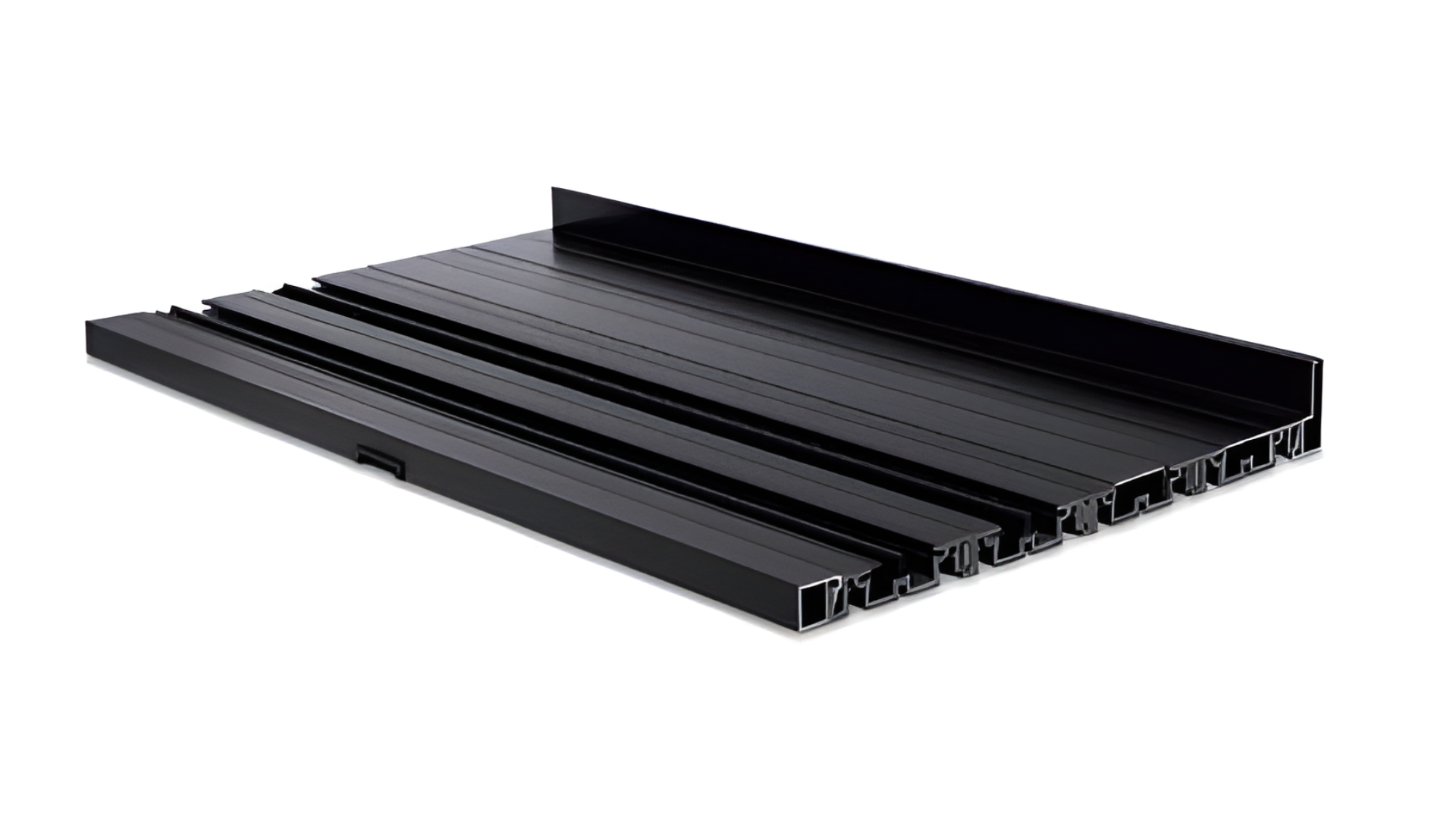

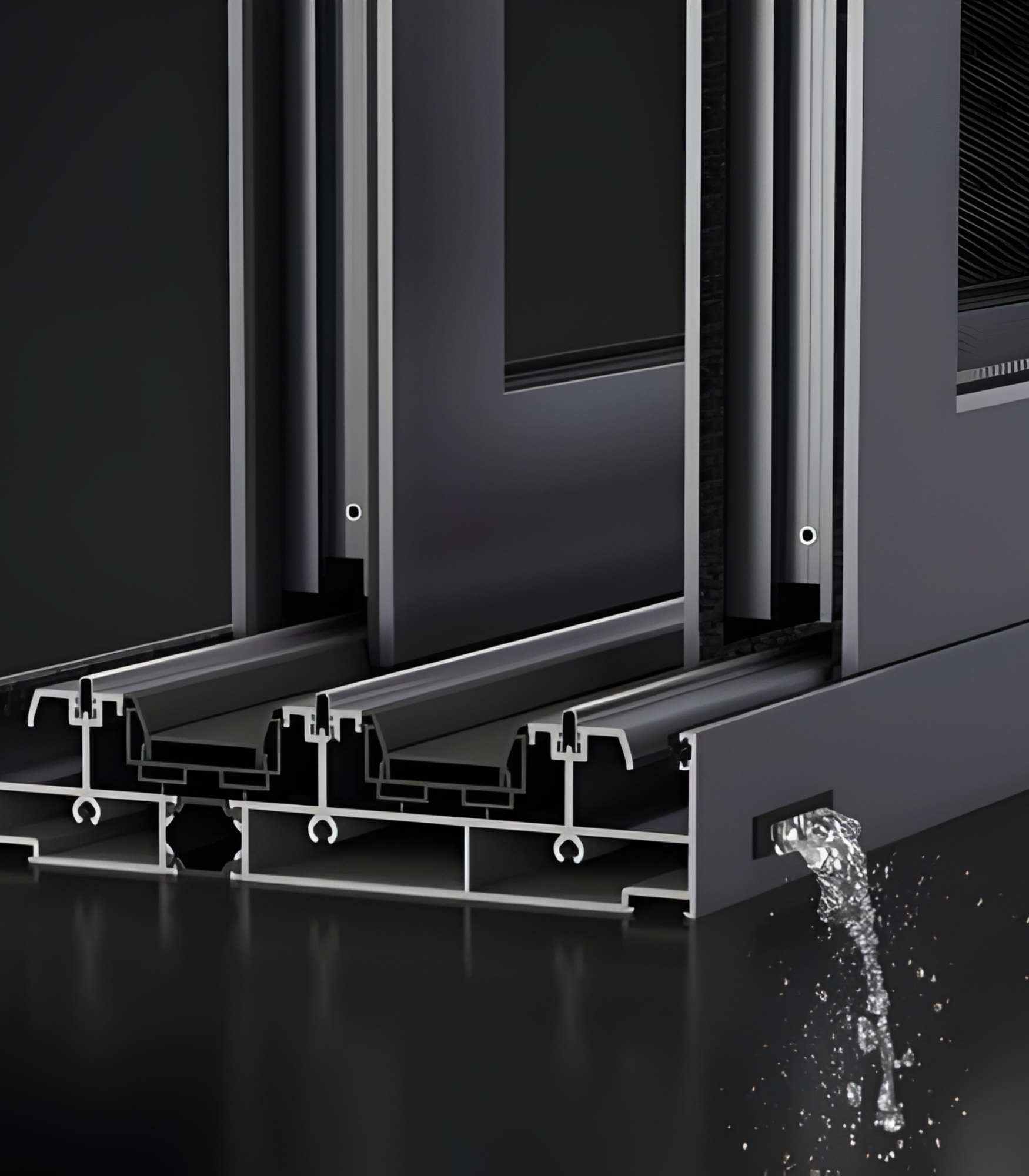

A sloped sill with internal drainage channels and weep ports handles wind-driven rain at the pressures common during South Florida thunderstorms. The AAMA 812 low-expansion foam sealant we apply at perimeter joints creates a secondary moisture barrier between frame and rough opening.

Wind Resistance

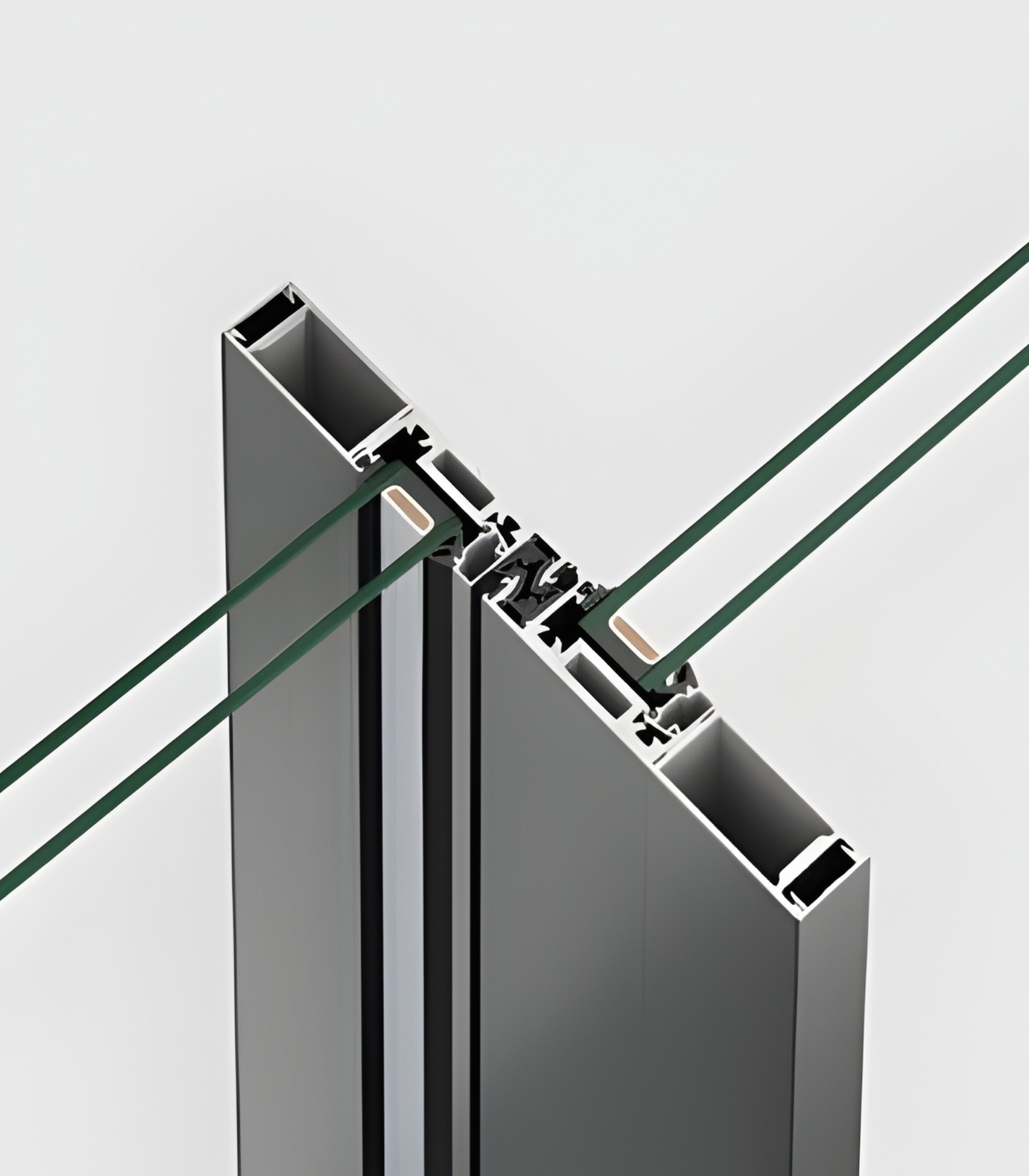

The 0.118-inch wall thickness and reinforced interlock stiles resist the positive and negative pressures of coastal wind events. Impact-rated laminated glass options meet Miami-Dade and Florida Building Code requirements for High Velocity Hurricane Zones. North Palm Beach sits in a region where design pressures matter, and this door is engineered accordingly.

Security & Hardware

Stainless steel tandem rollers carry panel weight without binding, and multi-point locking engages at the sill and header simultaneously. The hardware is corrosion-resistant for salt-air exposure. For ground-floor installations in North Palm Beach, we recommend laminated glass for its forced-entry resistance as well as storm protection.

Color & Glass Options

The six finish options on the VLX 150 cover the full architectural spectrum we see in North Palm Beach.

Premium Black and Pure White suit the modern coastal homes going up along the Intracoastal Waterway and in the Estates of North Palm Beach, where crisp contrast against stucco or stone is the design intent. Anodized Silver reads as raw aluminum, appropriate for contemporary builds with exposed structural expression. Bronze and Champagne warm the frame for traditional Florida architecture, Mediterranean revivals, and the softer palettes common in older PGA National properties. Teak Wood grain finish gives the warmth of wood without the maintenance liability in our humidity and salt air.

Glass selection depends on orientation and use. Clear glass maximizes visible light transmission for north-facing rooms. Low-E coatings reject infrared heat on west and south exposures without the mirror effect of tint. Tempered glass is code-required for doors and sidelites. Laminated glass provides impact rating, sound control, and security in one specification. Gray Tint and Black Tint reduce glare and solar gain for walls of glass that would otherwise overheat interiors. We walk North Palm Beach clients through the glass selection based on room function, exposure, and whether the home falls under HOA architectural review with specific aesthetic requirements.

Installation by Sightline Windows & Doors North Palm Beach in North Palm Beach

Every VLX 150 we install in North Palm Beach follows a sequence we’ve refined across hundreds of door replacements and new construction projects. The process matters because ViewLux warranties require AAMA-standard installation by authorized partners. Improper installation voids that coverage, and we’ve seen too many homeowners learn that lesson after the fact.

We start with a pre-install inspection of the rough opening: plumb, level, square, and square footage of the structural support. North Palm Beach’s coastal soils and older slab construction sometimes present settling or out-of-plane conditions that must be corrected before the frame goes in. We don’t shim and pray. We fix the opening.

The frame is set level, plumb, and square to within 1/8 inch across the full span. For a 24-foot opening, that tolerance requires laser leveling and skilled adjustment. We anchor through the jamb and sill per AAMA 2400/2410 standards, using fasteners appropriate to the substrate, whether it’s concrete, concrete block, or wood framing.

Perimeter sealing gets AAMA 812 low-expansion foam sealant, not generic caulk or backer rod shortcuts. The foam expands to fill irregular gaps without distorting the frame, then we trim and cap with compatible sealant for UV resistance. This is the detail that prevents air and water infiltration five years out.

Panel installation follows: rollers adjusted for uniform contact, interlocks engaging smoothly, locks and keeps aligned. We operate the door through fifty cycles, checking for drag, noise, or binding. Final step is a water test with calibrated spray to verify sill drainage and perimeter seal integrity. Then we clean, protect, and walk the homeowner through operation and maintenance.

North Palm Beach’s Florida Building Code requirements, potential HOA review in communities like Seminole Landing or Lost Tree Village, and the practical realities of salt-air corrosion all inform how we install. We’re local. We know the inspectors, the common failure modes in this climate, and the difference between a door that looks good on day one and one that still operates smoothly in year fifteen.

Frequently Asked Questions - VLX 150 Heavy-Duty Sliding Door

Get a Quote - VLX 150 Heavy-Duty Sliding Door in North Palm Beach

Ready to open your North Palm Beach home to wider views and cleaner sightlines? Sightline Windows & Doors North Palm Beach will measure your opening, confirm structural requirements, and deliver a written, line-item quote with no obligation. We’re local, we’re authorized, and we install every door to manufacturer warranty standards. Call (561) 475-1246 today to schedule your free on-site consultation and get your project started.
