VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in North Palm Beach, FL | Sightline Windows & Doors North Palm Beach

The VLX 100 Bifold / Folding Door is an accordion-style aluminum folding system that turns entire walls into open-air passages. Homeowners across North Palm Beach install these when they want their living room, kitchen, or master suite to flow directly onto a patio, pool deck, or waterfront terrace without a threshold in the way. We’re Sightline Windows & Doors North Palm Beach, an authorized ViewLux installation partner serving North Palm Beach and the surrounding Palm Beach County barrier island communities. Because we install exclusively to manufacturer specification, your warranty stays intact and your door performs the way it was engineered to. Call (561) 475-1246 to schedule a free on-site measurement and written quote.

Call (561) 475-1246

Product Overview - VLX 100 Bifold / Folding Door

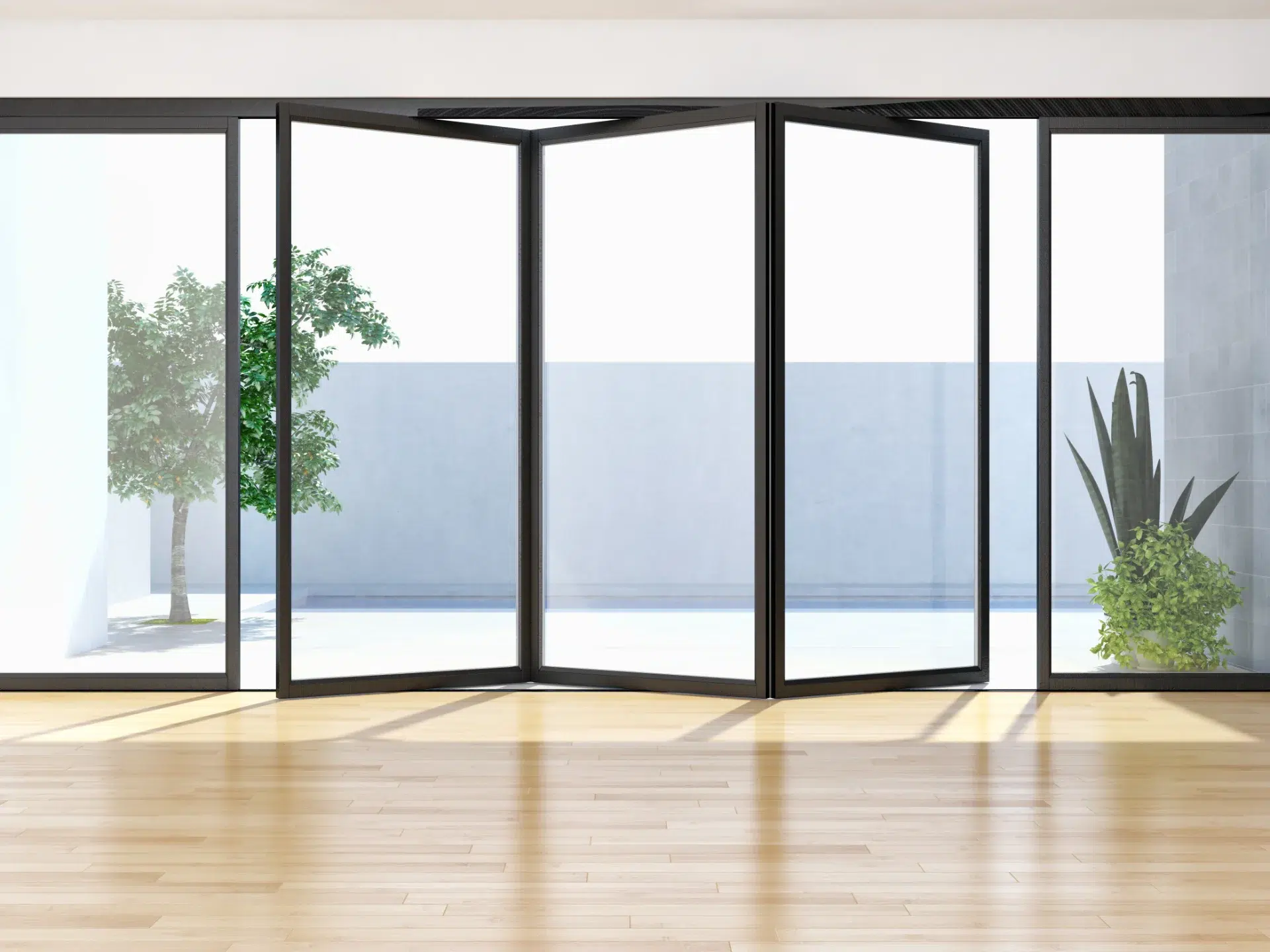

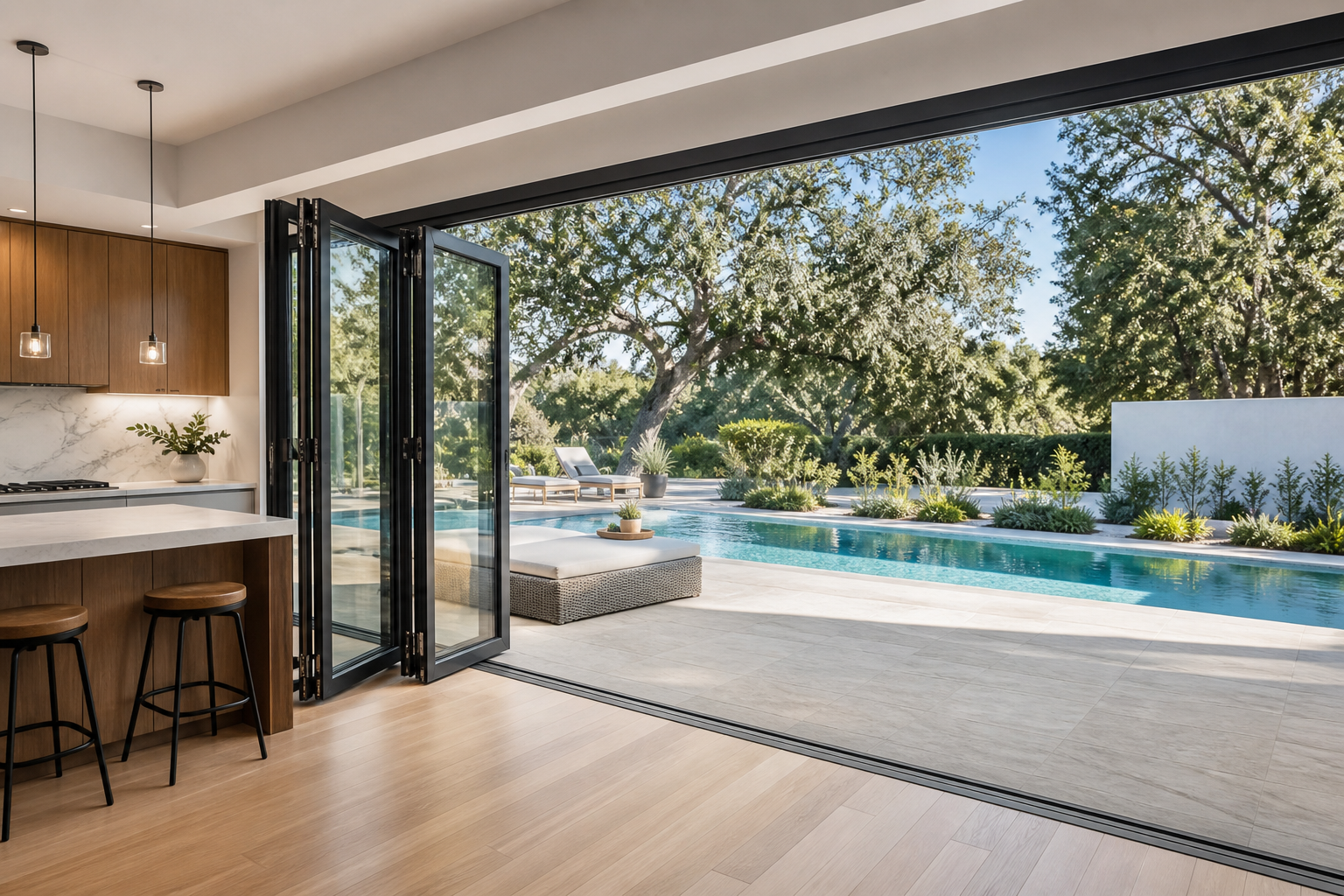

The VLX 100 is built around a simple idea: the wall between you and the outdoors should disappear when you want it to, and seal tight when you don’t. The accordion-style aluminum bifold design stacks panels to one or both sides, opening up wall-to-wall spans for true indoor-outdoor living. In North Palm Beach, where afternoon breezes off the Intracoastal and evening poolside entertaining define the lifestyle, that matters.

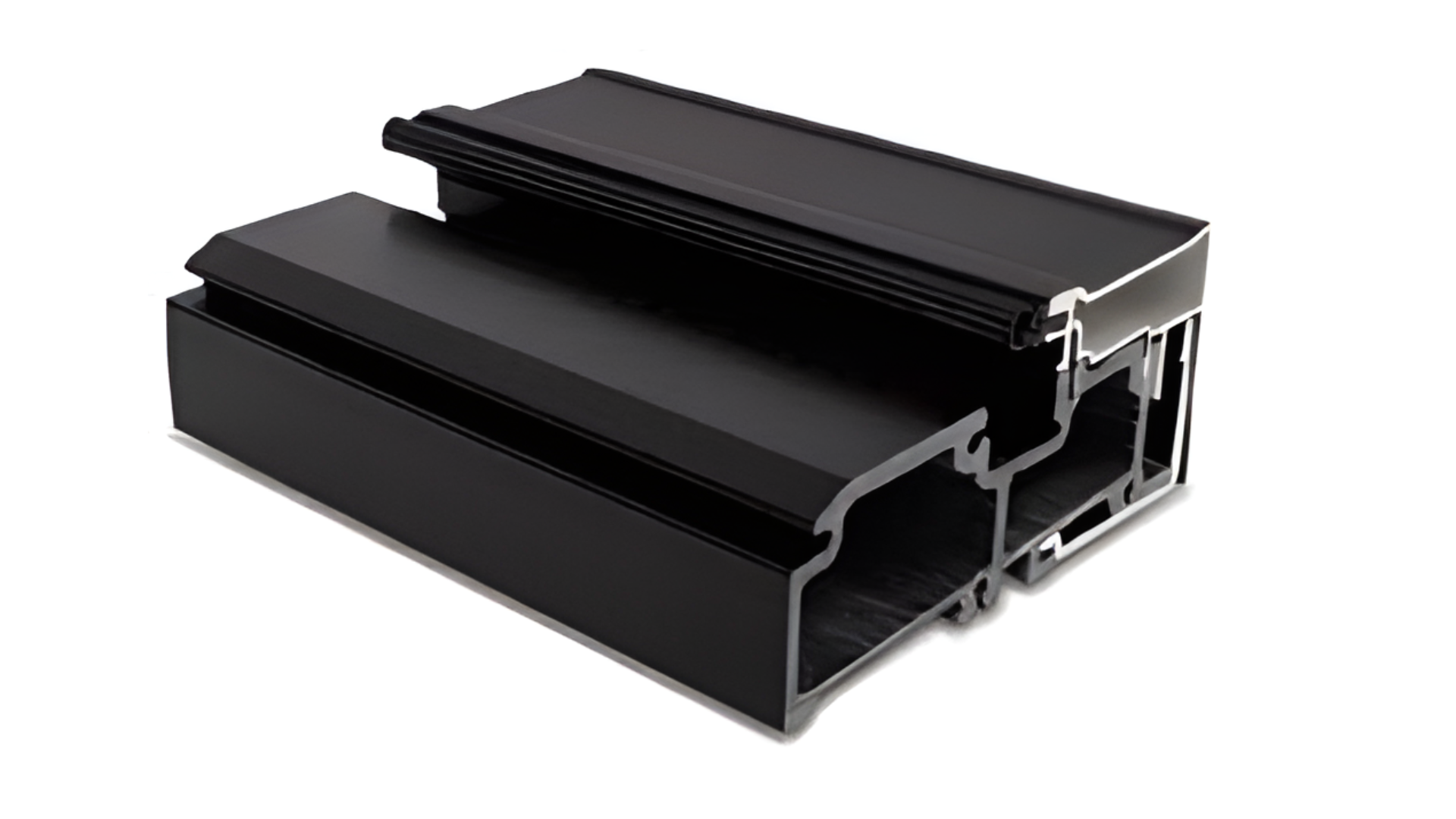

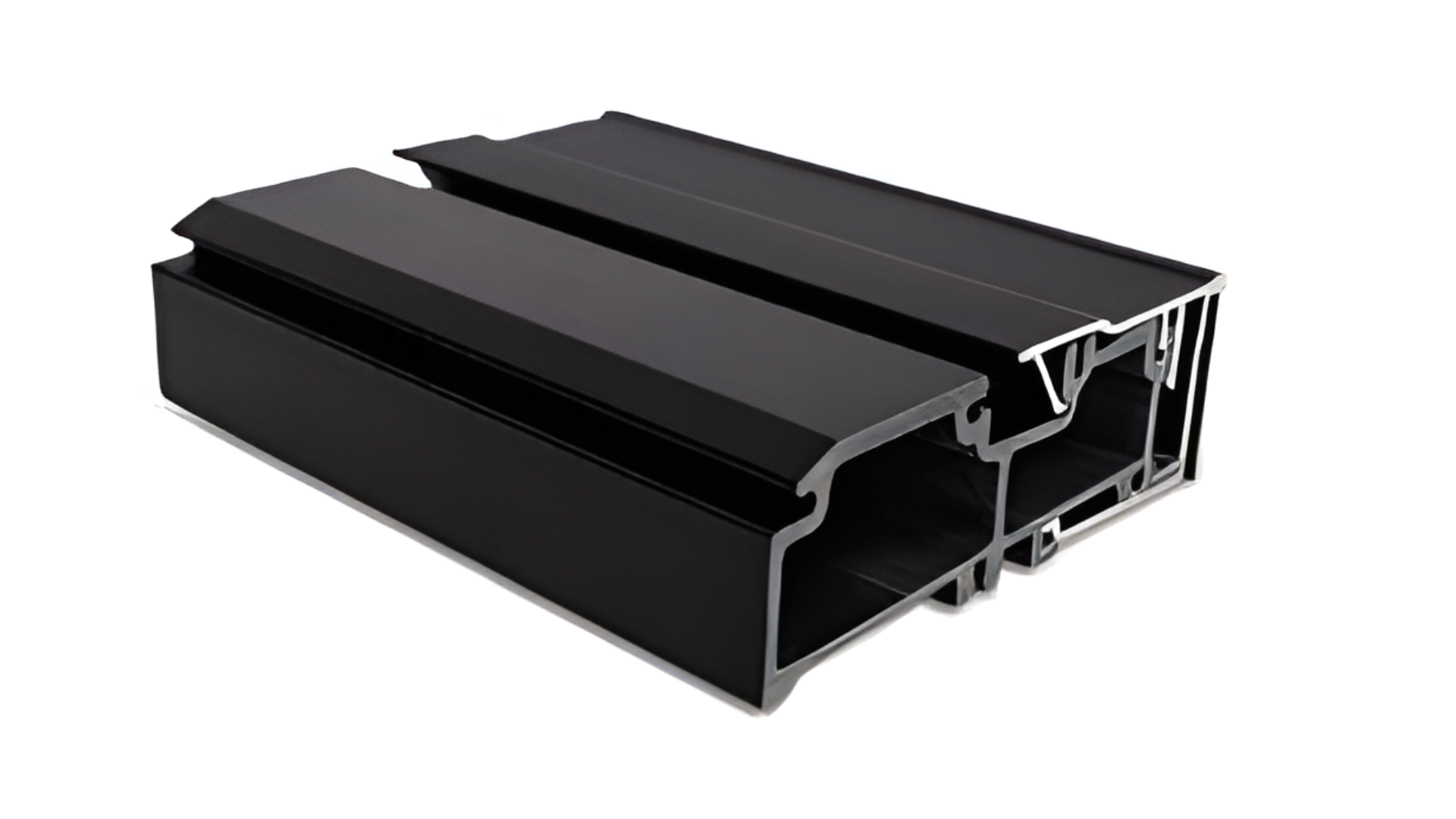

The frame uses a 0.098″ wall thickness aluminum extrusion with a 2.56″ profile width. That combination keeps the structure rigid without bulky sightlines. Panels glide on a precision track system rather than hanging from top hardware alone, which reduces stress on the header and keeps operation smooth across the full 20-foot maximum span. Buyers here choose the VLX 100 for new construction and renovations alike, from modern homes in Lost Tree Village to waterfront properties along the North Palm Beach shoreline where maximizing the view is non-negotiable.

The engineering prioritizes long-term durability in a salt-air environment. Aluminum doesn’t rot, warp, or swell like wood frames can after seasons of Florida humidity and coastal exposure. The thermal break separates interior and exterior aluminum surfaces to reduce condensation and improve comfort, which we’ll detail below.

Technical Specifications

Every configuration above can be mixed to match your opening dimensions, exposure, and design intent. We’ll walk through the combinations that make sense for your specific North Palm Beach home during your free estimate.

Before

After

Performance Features

Thermal Efficiency

The VLX 100 uses a polyamide thermal break that creates a thermal barrier between interior and exterior aluminum surfaces. NFRC-rated performance means verified U-factors and Solar Heat Gain Coefficients you can compare across products. Pair the thermal break with Low-E glass and you cut heat transfer significantly, which matters in North Palm Beach where summer cooling loads run high and energy costs add up.

Acoustic Performance

Multiple sealing points and the option for laminated glass reduce exterior noise transmission. For homes near US-1, the Florida Turnpike, or busy marina areas in North Palm Beach, the laminated glass upgrade adds mass to the glazing and dampens sound waves. The result is a quieter interior without sacrificing the view.

Airtightness & Weather Seal

Compression seals at panel meeting stiles and perimeter gasketing create continuous air barriers. The system is tested and rated for air infiltration resistance. In practice, that means no whistling during a stiff easterly breeze off the Atlantic, and no dust infiltration during dry season.

Waterproofing

Sill design and integrated drainage channels direct water to the exterior. AAMA 812 low-expansion foam sealant applied at all perimeter joints during installation creates a secondary moisture barrier. During our final water test, we spray the exterior to verify no penetration at panel joints or the sill.

Wind Resistance

The VLX 100 is wind-load rated for local code requirements. In Palm Beach County, that means engineered resistance to the design wind speeds specified for our coastal exposure category. The impact-resistant laminated glass option meets Miami-Dade and Florida Building Code requirements for hurricane-prone regions.

Security & Hardware

Multi-point locking hardware engages at several points along the trailing panel, not just a single latch. Tempered or laminated glass options resist breakage. The track system includes anti-lift features that prevent panel removal from the exterior when locked.

Color & Glass Options

Six finish options let the VLX 100 complement or contrast with your home’s exterior palette.

Premium Black and Pure White suit the clean lines of contemporary North Palm Beach architecture, the minimalist stucco and limestone homes that have multiplied along the waterfront in recent years. Anodized Silver reads industrial and modern; it pairs well with concrete and steel elements. Bronze and Champagne warm up traditional Florida ranch and Mediterranean-influenced designs without the maintenance of actual bronze cladding. Teak Wood offers the visual warmth of wood grain with aluminum’s structural integrity and zero rot risk, a popular choice for homes with existing wood accents.

Glass selection depends on orientation and use. Clear glass maximizes visible light and view clarity. Low-E coating reflects infrared heat while passing visible light, ideal for west-facing walls that take afternoon sun. Tempered glass is safety-rated and required by code for doors in many applications. Laminated glass adds the impact resistance and acoustic damping noted above. Gray Tint and Black Tint reduce glare and solar heat gain for walls with direct sun exposure; Black Tint in particular creates a striking visual effect from the exterior, making the glass read as almost mirror-like.

The Retractable Screen option stores in a housing when not in use and deploys across the opening when you want ventilation without insects. In North Palm Beach, where no-see-ums and mosquitoes are active most of the year, this is a practical upgrade that doesn’t compromise the clean sightlines when retracted.

Installation by Sightline Windows & Doors North Palm Beach in North Palm Beach

We install every VLX 100 to ViewLux’s specification and to the AAMA 2400/2410 installation standard. That sounds technical, but it matters for two reasons: performance and warranty protection. Improper installation, including out-of-square framing, inadequate shimming, or skipped perimeter sealing, voids the manufacturer warranty and leads to the exact problems, air leaks, water intrusion, hard operation, that the product was designed to prevent.

Our process starts with a pre-install inspection of your opening. We check rough opening dimensions, structural support for the header load, and subsurface conditions. In North Palm Beach, we regularly encounter conditions that require attention: salt-corroded fasteners in older homes near the water, additions built without adequate header support for a 20-foot span, or stucco finishes that need careful cutting to preserve the weather barrier.

We set every frame level, plumb, and square before fastening. Shims are placed at structural points, not randomly. We apply AAMA 812 low-expansion foam sealant at all perimeter joints between frame and rough opening, creating an airtight, watertight seal that flexes with structural movement. After installation, we operate every panel through full cycles, check lock engagement at all points, and perform a water spray test on the exterior to verify no penetration.

Cleanup is part of the job. We protect floors and finishes during work, remove all debris, and leave the operating area clean. Our installations in North Palm Beach carry our workmanship warranty in addition to the ViewLux product warranty.

Florida’s climate demands specific attention. The combination of high humidity, salt air, and intense UV exposure means sealants, fasteners, and finishes all need to be specified for this environment. We don’t use hardware or materials rated for inland climates and hope they hold up. They won’t.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?

Lead time typically runs 8-12 weeks from final measurement and color confirmation, depending on panel count and glass selection. Custom finishes and impact-rated laminated glass can extend this slightly. We coordinate delivery to minimize your wait and schedule installation promptly upon arrival. Call (561) 475-1246 to check current lead times for your configuration.

Does the VLX 100 qualify for energy tax credits?

The VLX 100 with Low-E glass and thermal break construction meets the ENERGY STAR criteria for fenestration products in the South-Central climate zone, which may qualify for federal energy efficiency tax credits depending on current IRS guidance and your tax situation. We provide NFRC certification documentation with your invoice for your accountant’s review. Call (561) 475-1246 to confirm which configurations qualify.

What warranty comes with the Bifold / Folding Door?

ViewLux provides a limited lifetime warranty on the aluminum frame, 20 years on the insulated glass unit, and 10 years on hardware and finishes, subject to proper installation by an authorized partner. Our Sightline Windows & Doors North Palm Beach workmanship warranty covers installation labor for 5 years. Warranty registration is completed by us at final inspection. Call (561) 475-1246 for full warranty terms.

Can I customize the size?

Yes, within the 20-foot maximum span. Panel counts from 2 to 6 allow width adjustment in increments, and height is configurable to your rough opening. We measure on-site to confirm exact dimensions and recommend the panel configuration that gives you the best traffic pattern and view. Call (561) 475-1246 to schedule your free measurement.

How do I maintain aluminum frames?

Rinse frames quarterly with fresh water to remove salt residue, especially if you’re within a mile of the Intracoastal or Atlantic. Clean tracks of debris monthly to prevent drainage blockage. Lubricate hardware annually with a silicone-based product. Avoid abrasive cleaners or solvents that damage anodized or painted finishes. We provide a maintenance checklist at project completion. Call (561) 475-1246 if you need maintenance service or have operational concerns.

Get a Quote - VLX 100 Bifold / Folding Door in North Palm Beach

Ready to open your North Palm Beach home to the outdoor living you’re already paying for in property taxes and maintenance? We’ll measure your opening, confirm structural requirements, and deliver a written line-item quote with no pressure and no obligation. Every quote includes panel configuration, glass specification, finish selection, screen option, and installed price. Call (561) 475-1246 or contact us to schedule your free on-site consultation. We serve North Palm Beach and surrounding Palm Beach County communities.

Written by the team at Sightline Windows & Doors North Palm Beach, serving North Palm Beach since 2018.
